Chemistry 12






Bond TypeGenerally Formed BetweenBond Formed ByProperties Associated with bond typeExample of substances Utilizing bonf type
CovalentAtoms of non-metallic elements of similar electronegativitySharing of electron pairsStable non ionizing molecules-not conductors of electricity in any ohaseC2H5
IonicAtoms of metallic and non-metallic elements of wide.y different electronegativitiesElec. attraction between ions resulting from transfer of electrons fron one to anotherCharged ions in gas liwuid and soid. Sokid is electrically non- sonducting. Gas and liquid are condustorsNaCl, K2O, BaS, LiH
MetallicAtoms of metallic elementsCommon exchange of outer electrons between atons of low electronegativityElectrical conductors in all ohases, lusterNa, Au, Cu. Zn
DipolePolar covalent moleculesElectrical attraction between dioples resulting from polar bondsSubstances have higher boiling and melting points than those having non-polar molesules of similar sizeICl, SO2
HydrogenMolecules having hydrogen attached to atim of high electronegativityAttraction of exposed proton to electronegative atom in neigh boring moleculesubstances have mush higher boiling and melting points than those having non-polar molecules of similar sizeH2O, HF
Dispersion ForcesNon polar moleculesWeak electrical fluctuations which destroy spherical symmetry of electronic fields about atomsSubstanve have soft crustals and comparaticeley low melting and boiling pointsHe, Ar, Cl2,CH4

Special covalent

NETWORK CRYSTAL - carbon, silicon - HIGH m.p. S1C2, C, S1O2




substanceMelting Point ()Boiling point ()Reason
C22700-Networl Crystal
Au10632807Metallic
NaF9881695Ionic
NaI
NaOH
651
318
1300(May Decompose)
1300(may Decompose)
Electronegativity
H2O0100Hydrogen Bonding
HI
HBr
-50
-88
-35(Dipolar)
-65(Dipolar)
Molar Mass
Ne
He
-248
-272
-246(London)
-269(london)
Molar Mass
Except N->Ne


The above are general nrules which are useful BUT there are exceptions.

Nonpolar molecules like CH4, CCl4, etc are placed with the London forces because of their shapes, they are nonpolar and have no dipolar forces. As the molar mass increases, so does the attraction (easier to induce a dipole) therefore their melting points also tend to rise.
Pridict the type of conding that is displayed in the following substances

Xe London ICl Dipolar CO2 London HF H.B.
NaBr Ionic HI Dipolar CH4 London CO Dipolar
S1O4 Network Crystal diamond (C) Network Crystal CH3Cl CaCO3 Ionic
O2 London NH3 Hydrogen N2H6 Hydrogen Bonding CS2 London
H2O Hydrogen Bonding Fe Metallic Pt Metallic SO2
F2 London SuO2 Network H2O2 Hidrogen Bonding CCl4 London

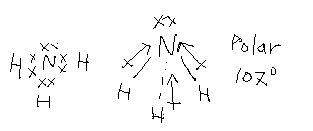

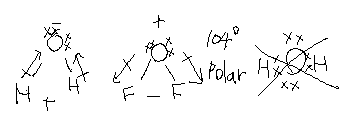

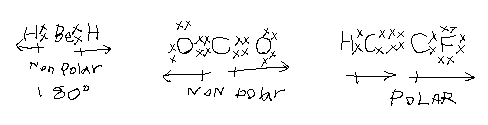

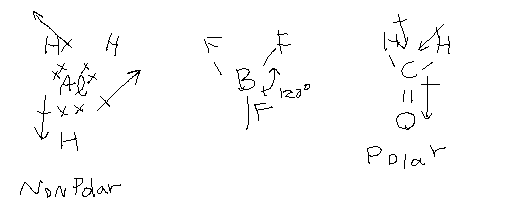

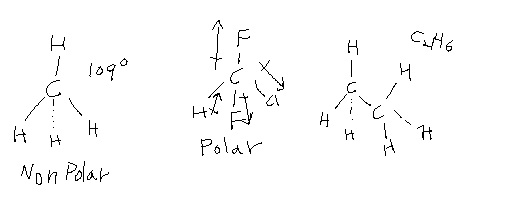

VSEPRT (Valence shell electron pair repulsion)

Basic Shapes:

1. Collinear (linear triatomic)

2. Traiangular Planar

3. Tetrahedral

4. Triangular Pyramidal

5. Angular
